Notice: ESC upgrade into new version like photos showed.


Description:

Brand: iFlight

Model: BLITZ Mini

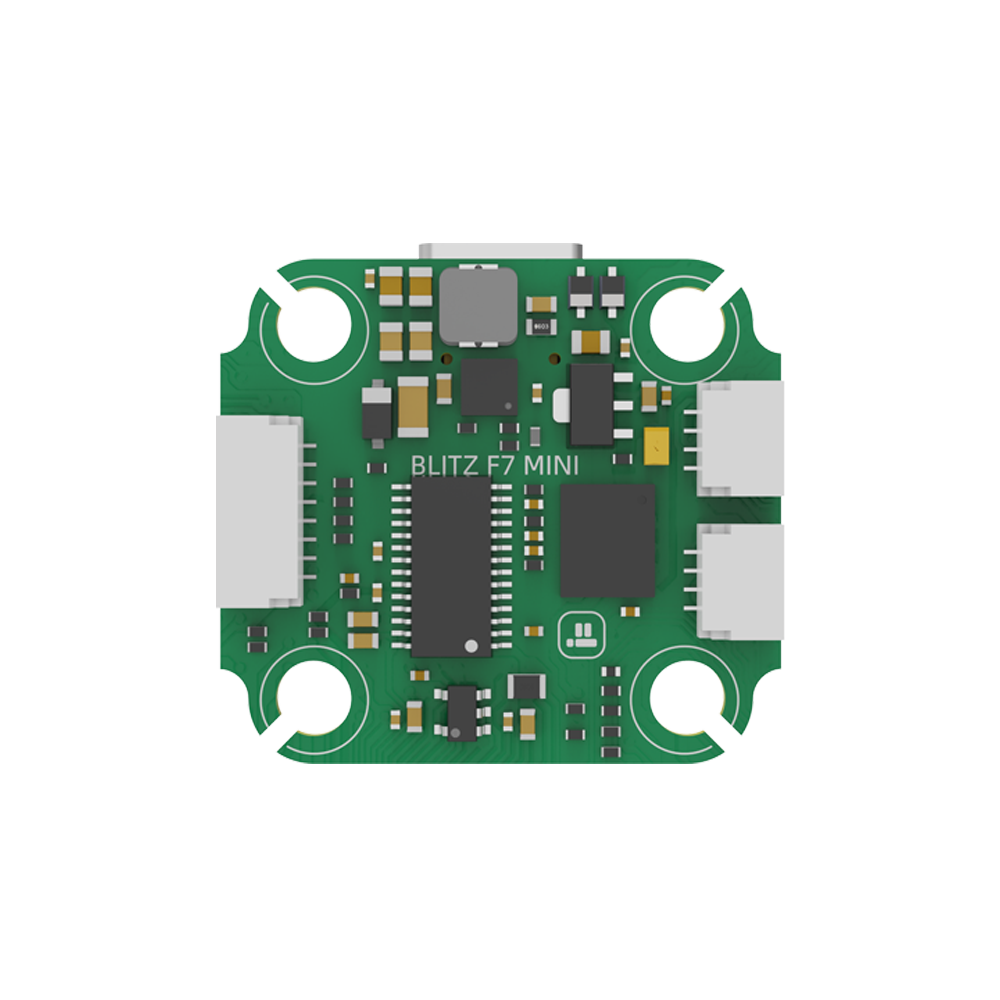

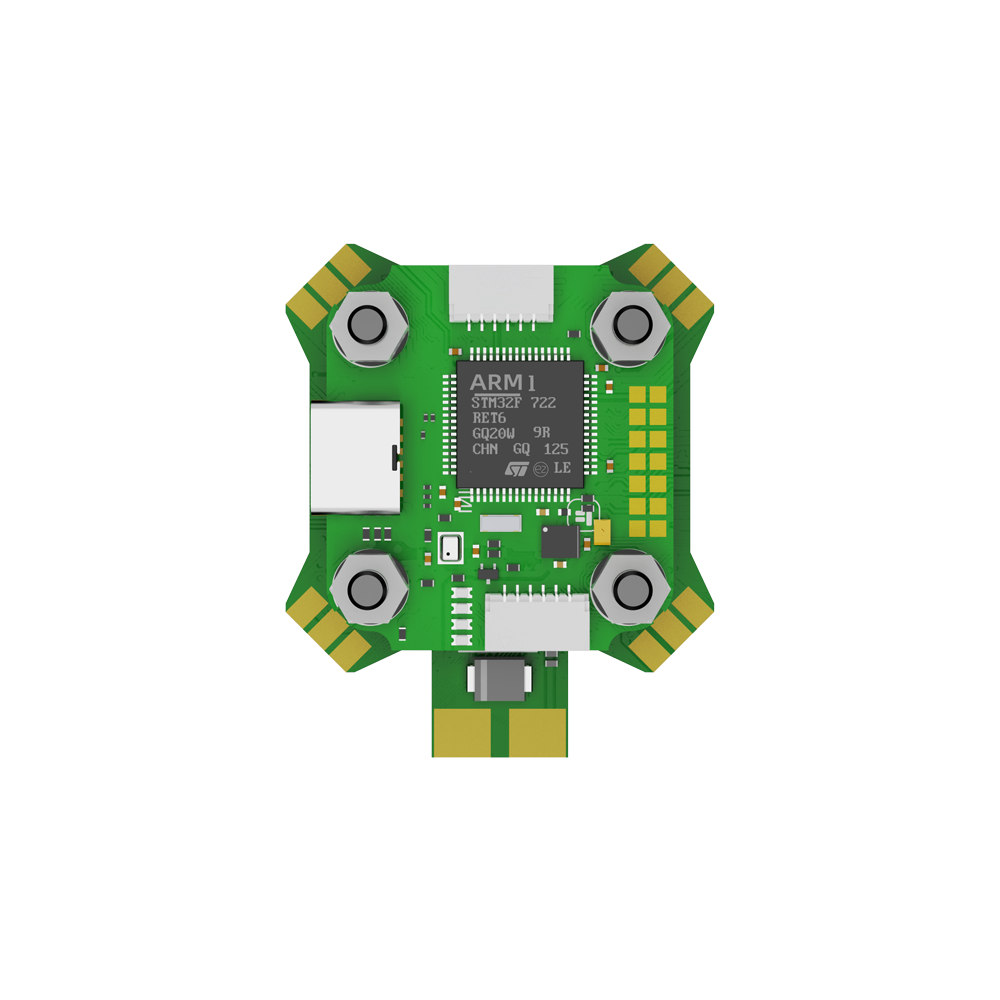

BLITZ Mini F7 Flight Controller

( Diagram Picture)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip:  AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs:   4x (SH1.0 connector)
I2C serial:   SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller:   Yes
Beeper pad:   Yes
Firmware target:   IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g


Wiring suggestion:
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry


Top Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

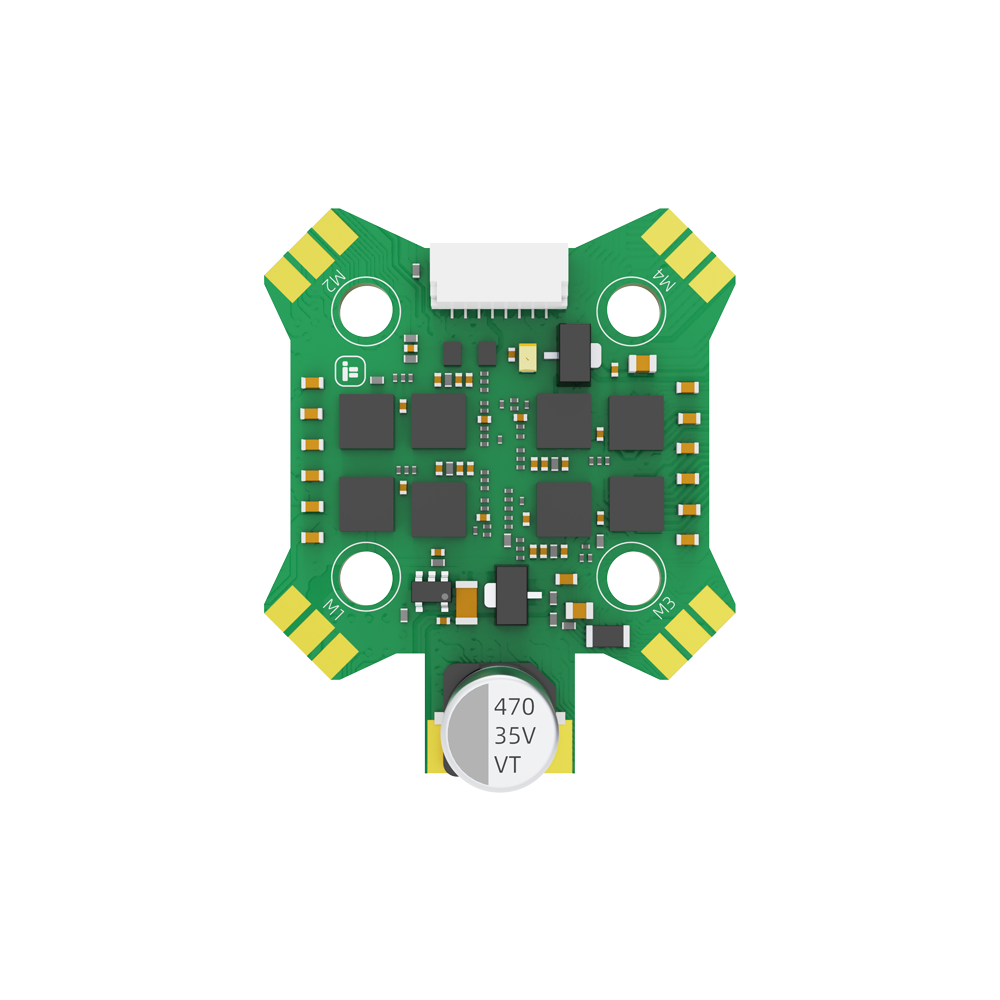

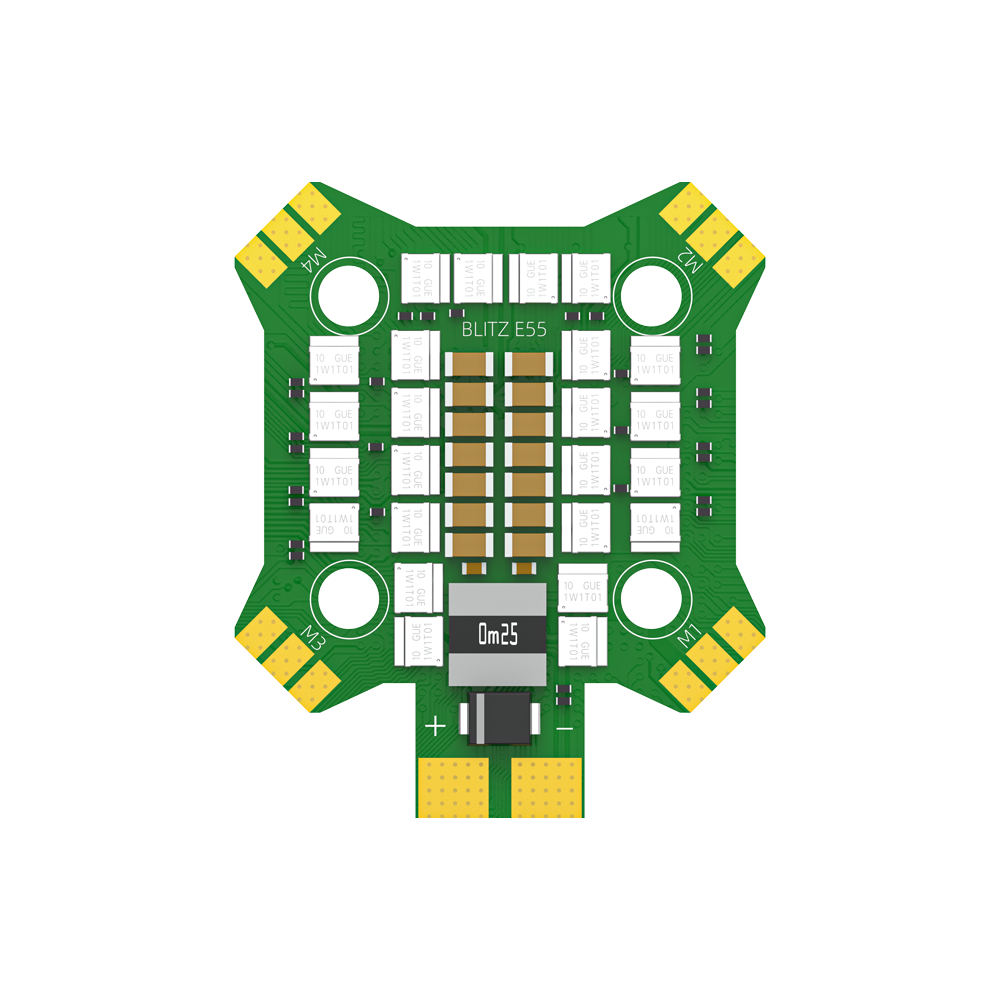

New BLITZ MINI E55 4IN1 55A 2-6S ESC

( Diagram Picture)

Input Voltage: 2-6S
Max. Continuous Current: 55A

Max. Burst Current: 60A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting Dimensions: 20 x20 mm/Φ4mm
Dimensions: 35x42mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc


Package Included:

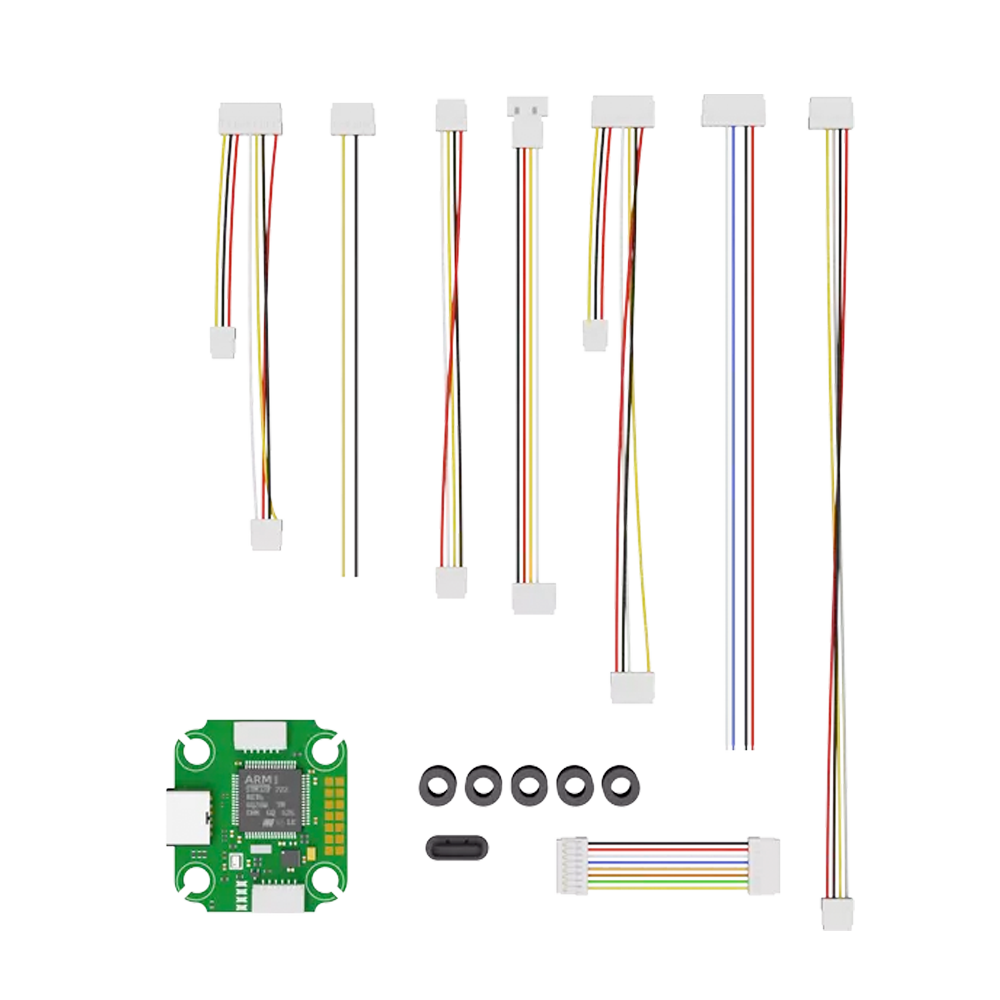

Mini F7 FC Version

1x BLITZ Mini F7 V1.1 Flight Controller
1 set of FC connectors

1 set silicon grommets

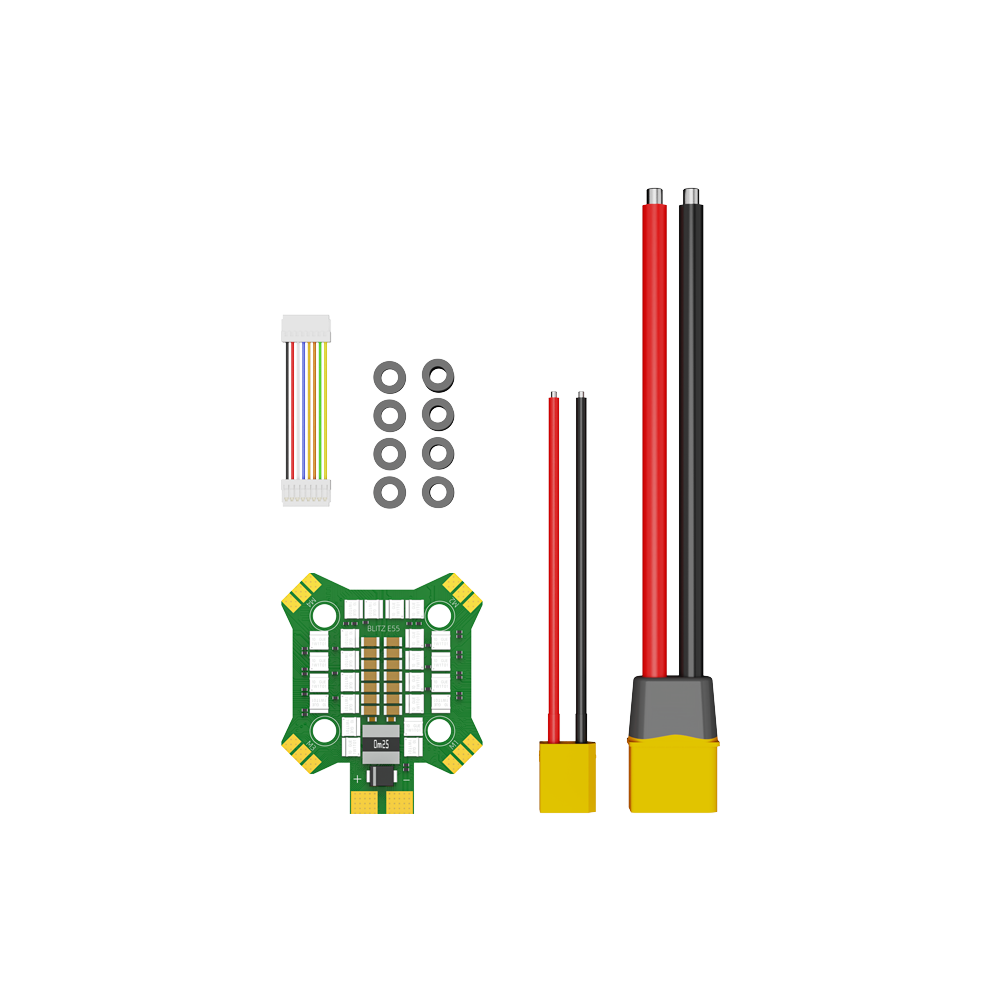

ESC Version 1x BLITZ Mini E55 4IN1 ESC
1 set Power cables & ESC signal wires

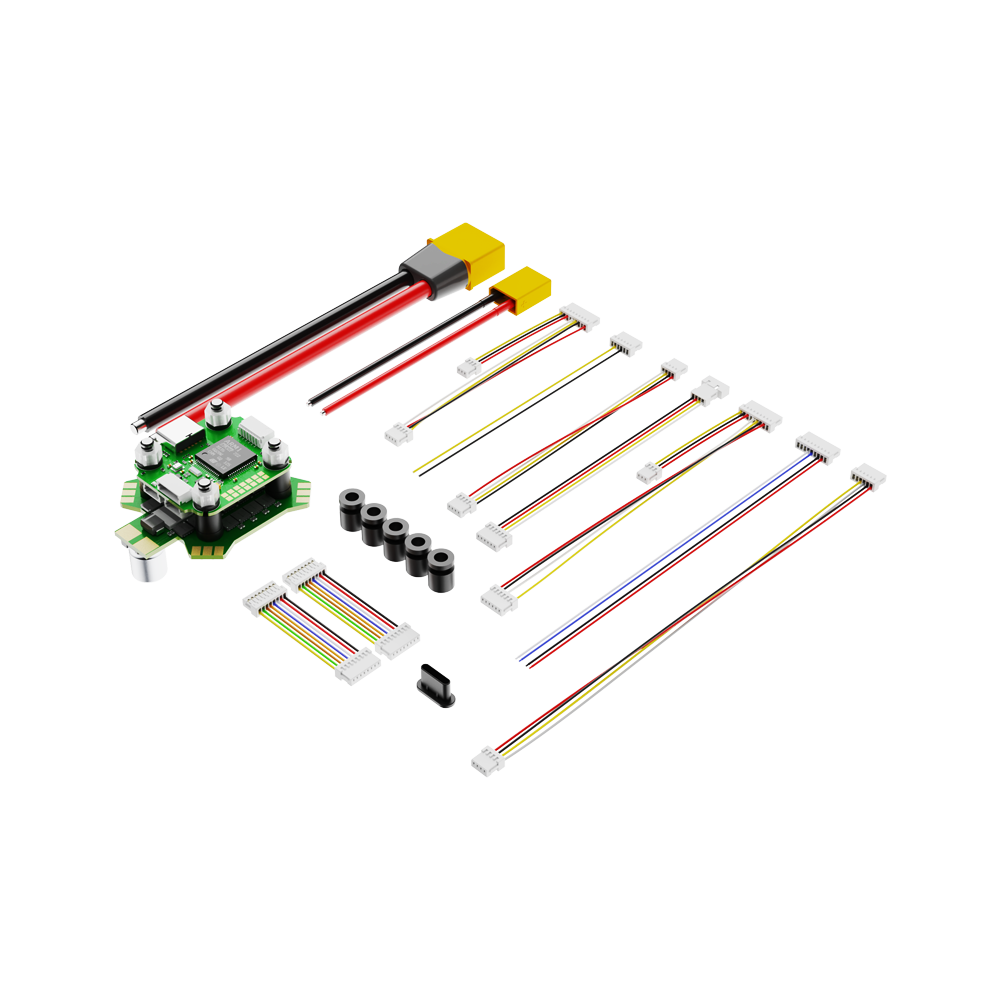

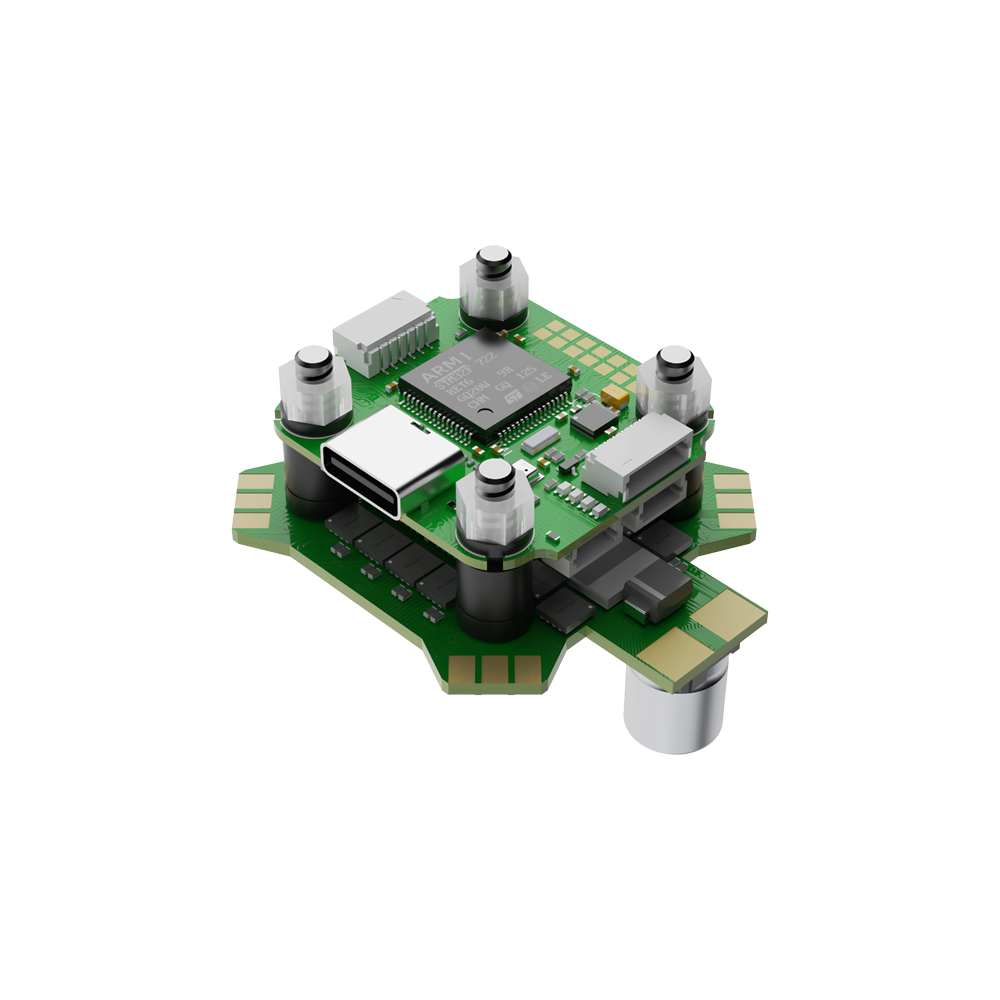

FC + ESC

1x BLITZ Mini F7 V1.1 Flight Controller

1x BLITZ Mini E55 4IN1 ESC

1set x silicon grommets

1set x wire harness for F7 FC
